Series Options: Available in MG Series (rotary knob control with digital display) and DQ Series (ultra-slim 25 mm profile with optional automatic film-sensing switch).
-
Available Sizes: Single (1 Film), Double (2 Films), Triple (3 Films), and Quadruple (4 Films).
-
Frame & Build: Constructed with top and bottom brushed aluminum alloy frames, durable ABS plastic side covers, and high-transmittance acrylic viewing screens.
-
Luminance & Dimming: Smooth PWM digital dimming ranging from 1% to 100% continuous adjustment, delivering maximum brightness from 4500 cd/m² (15,000 lux) up to 6500 cd/m².
-
Color Temperature (CCT): Configurable from 4,000K to 10,000K depending on model variant for optimal film contrast.
-
Screen Uniformity: High optical brightness uniformity of 90% or greater across the entire viewing area.
-
Power Rating: Efficient power usage ranging from 30W (Single Panel) up to 100W–120W (Quadruple Panel).
-
Operational Performance: Quick illumination response within 10 seconds, silent operation under 40dB, and low surface thermal output under 60°C after continuous use.
Brand: Micare
Medical Imaging, OPD / EmergencyLED Medical Film Viewer

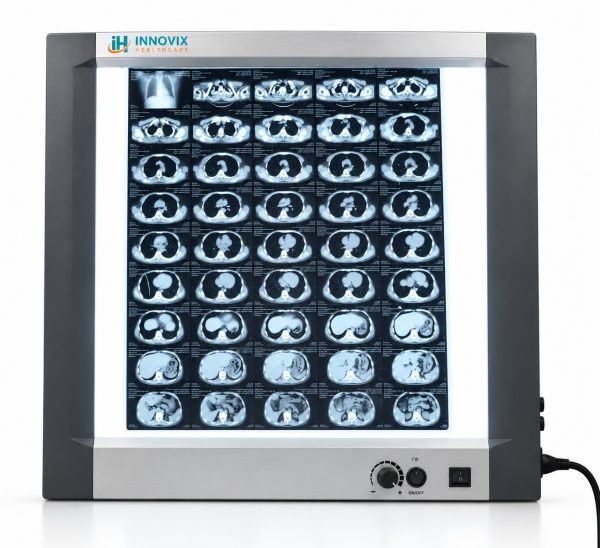

+ Free ShippingLED Medical Film Viewer (Negatoscope / LED X-Ray Viewer) is an advanced medical display light box designed for precise evaluation of X-ray, CT, DR, and MRI radiology films in hospitals, clinics, and diagnostic centers. Combining both the MG Knob Series and DQ Slim Series specifications into a versatile lineup, this equipment provides continuous brightness control, exceptional screen uniformity, and an energy-efficient LED engine with a lifespan exceeding 100,000 hours. Available in Single, Double, Triple, and Quadruple panel sizes to support diverse clinical diagnostic requirements.
